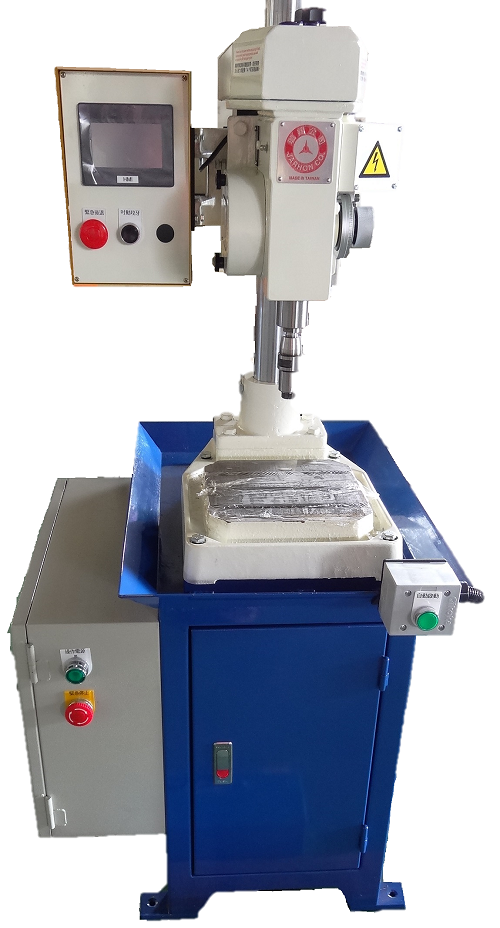

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanServo Numerical Control Tapping Machine(Gear-Pitch) Home > Servo Numerical Series > Servo Numerical Control Tapping Machine > Servo Numerical Control Tapping Machine(Gear-Pitch)
Product ID: JT-4508NCInquiry
- Numerically control main spindle speed and tapping depth. Repeatability ±0.1mm.
- Servo motor attached with HMI., it's convenient to set and operate.
- With functions of general tapping, blind-hole tapping, small-hole tapping and peck tapping, etc.
- It can connect and handshake with other mechanical equipments.
Specification
| Vertical JT-4508NC | |||||||
| Main spindle max. stroke(mm) | Type of the front side of Main spindle(mm) | Diameter of thread(mm) | Up and Down moving distance of the head(mm) | Distance between the main spindle and the table(mm) | Working table size(mm) | ||
| 45 |
JT-2 |
Ø2~Ø8以下 (Ø10) |
260 | 33~310 |
225x230 |
||
| Servo motor |
Main spindle speed (R.P.M.) |
Auto feeding thread pitch for which suits machine | Max. capacity of Multi-spindle | Packing dimension(cm) | Gross Weight(kg) | ||
| Range of TPI | mm | ||||||
|
0.75 KW ~ 1KW |
Max. 2400
|
80 72 64 60 56 48 44 40 36 32 28 27 26 24 20 19 18 (16) |
0.4 0.45 0.5 0.6 0.7 0.75 0.8 0.9 1.0 1.2 1.25 (1.5) (1.75) |
Ø3x10 spindles Ø4x5 spindles Ø5x2 spindles |
00x00x00 (LxWxH) |
000 | |
