adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanPneumatic Auto. Drilling Machine Home > Drilling Machine Series > Vertical Type > Pneumatic Auto. Drilling Machine

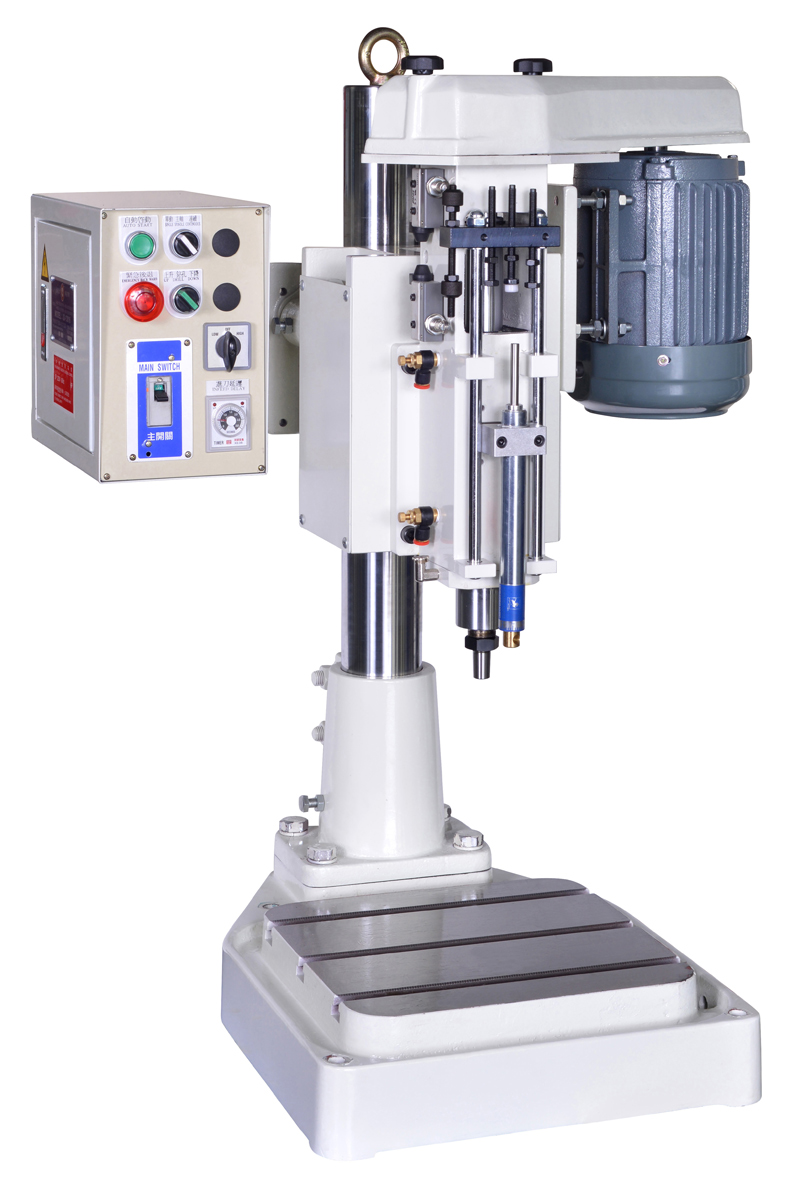

Product ID: JD-8510Inquiry
- Patented mechanical drilling with "auto discharging chips" device-optional attachmentfor special function
- It's ideal for processing deep hole, tiny hole, stainless steel with the auto chips discharging device.
- It can prolong drilling tool life and make the precise bore.
- It is available for installing the multi-spindle drilling head for increasing in the drilling production efficiency.
Example:
Specification
| JD-8510 | ||||||
| Main spindle max. stroke(mm) | Drilling stroke(mm) | Drilling hole capacity(mm) | The shape of the front surface of main spindle, option one(mm) | Distance between the main spindle and the table(mm) | Working table size(mm) | |
| 85 |
Standard 25 Extension 50 |
Ø1~10 |
ER-20 JT-6 With multi-spindle |
120~445 | 340x340 | |
| Motor | Main spindle speed (R.P.M) | Drilling power(kg/cm²) | Packing dimension(cm) | Net Weight(kg) | G. Weight(kg) | |
| 50HZ | 60HZ | |||||
|
2HPx2Px4P |
696 999 1392 1428 1998 2856 |
835 1198 1670 1713 2396 3426 |
Pneumatic 5 |
102x82x129 (LxWxH) |
about 218 | 278 |
