adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanPneumatic Auto. Drilling Machine Home > Drilling Machine Series > Vertical Type > Pneumatic Auto. Drilling Machine

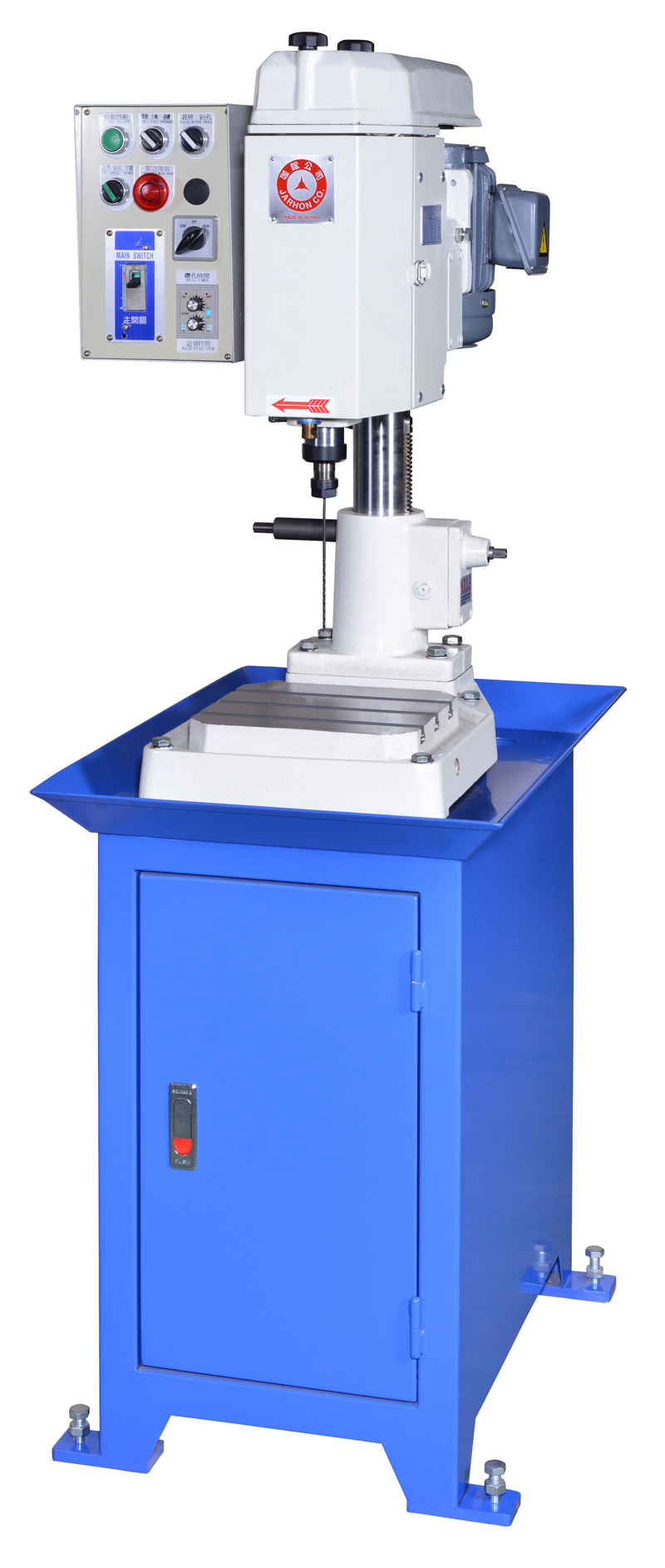

Product ID: JD-6005Inquiry
- Patented mechanical drilling with "auto discharging chips" device-optional attachmentfor special function
- Main spindle running speed is with 10,000 RPM, it's ideal for processing deep hole, tiny hole, stainless steel with the auto chips discharging device .
- It can prolong drilling tool life and make the precise bore.
Feature
EXAMPLE / AUTO REJECTED CHIP DRILLING MACHINE • WITH HAND MOULD UNIT
- Available to process ceramics and the relevant special materials.
- Available to apply to watch cases and bands processing and gain high praise. Also available to glasses frames industries.
- Available to process in high revolving speed
Specification
| JD-6005 | ||||||
| Main spindle max. stroke (mm) | Drilling stroke (mm) | Drilling hole capacity(mm) | The shape of the front surface of main spindle, option one(mm) | Distance between the main spindle and the table(mm) | Working table size(mm) | |
| 60 | Standard 25 |
(Soft) Ø0.5~5 |
ER-16 JT-1 |
60~315 | 225x230 | |
| Motor | Main spindle speed (R.P.M) | Drilling power(kg/cm²) | Packing dimension(cm) | Net Weight(kg) | G. Weight(kg) | |
| 50HZ | 60HZ | |||||
|
1HPx2Px4P |
1500 3000 4500 3000 6000 9000 |
1800 3600 5400 3600 7200 10800 |
Pneumatic 5 |
108x72x167 (LxWxH) |
about 175 | 225 |
