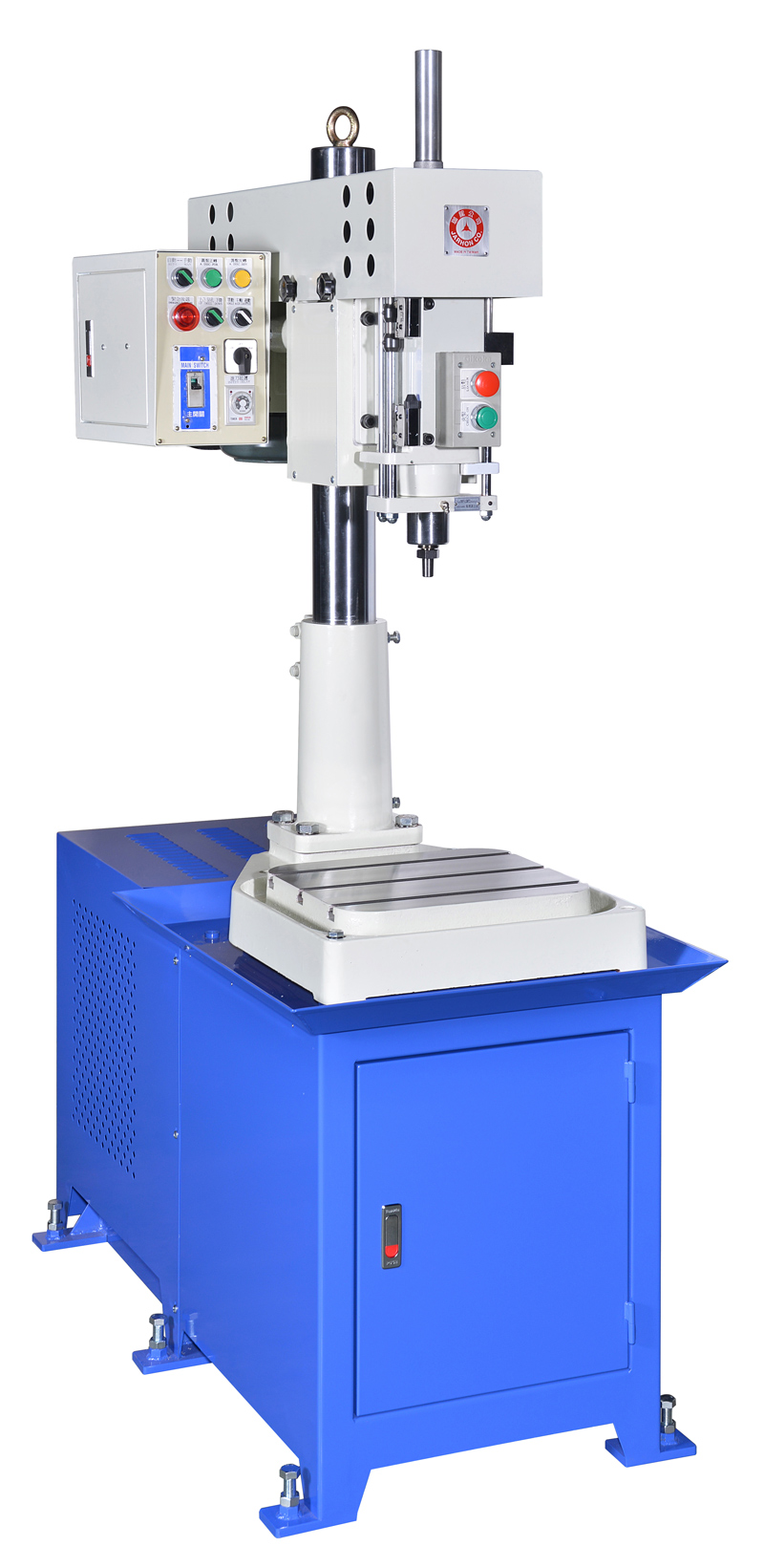

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanHydraulic Auto. Drilling Machine Home > Drilling Machine Series > Vertical Type > Hydraulic Auto. Drilling Machine
Product ID: JD-13016HInquiry
- Hydraulic push spindle more stable and stronger.
- Patented hydraulic system "Auto. discharging chips"," Auto. breaking chips"device-optional attachment.
- Ideal to equip with medium-type multi-spindle drilling head to enhance production efficiency.
- Available on reaming, hard metal drilling.
Feature
EXAMPLE / MOBILES AND MOTORCYCLES PARTS MULTI-SPINDLE DRILLING MACHINE
- Applicable to large-size multi-spindle drilling hand.
- Applicable to drill deep holes and ream holes.
- Its steady feed is ideal to process mobiles and motorcycles parts multi-spindle drilling holes
- Available to be the vertical drilling machine to reach every requirement.
Specification
| JD-13016H | ||||||
| Main spindle max. stroke(mm) | Drilling stroke(mm) | Drilling hole capacity(mm) | The shape of the front surface of main spindle, option one(mm) | Distance between the main spindle and the table(mm) | Working table size(mm) | |
| 130 |
100 |
Ø2~Ø16 |
ER-32 JT-6(multi-spindle) |
200~610 | 340x380 | |
| Motor | Main spindle speed (R.P.M) | Drilling hole capacity(kg/cm²) | Packing dimension(cm) | Net Weight(kg) | Gross Weight(kg) | |
| 50HZ | 60HZ | |||||
|
3HPx4Px8P |
337 495 675 682 990 1365 |
405 594 810 820 1188 1638 |
Hydraulic 15 |
145x78x208 (LxWxH) |
about 475 | 550 |
