adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanGear-Pitch Type Auto. Tapping Machine(Horizontal) Home > Tapping Machine Series > Horizontal Type > Gear-Pitch Type Auto. Tapping Machine(Horizontal)

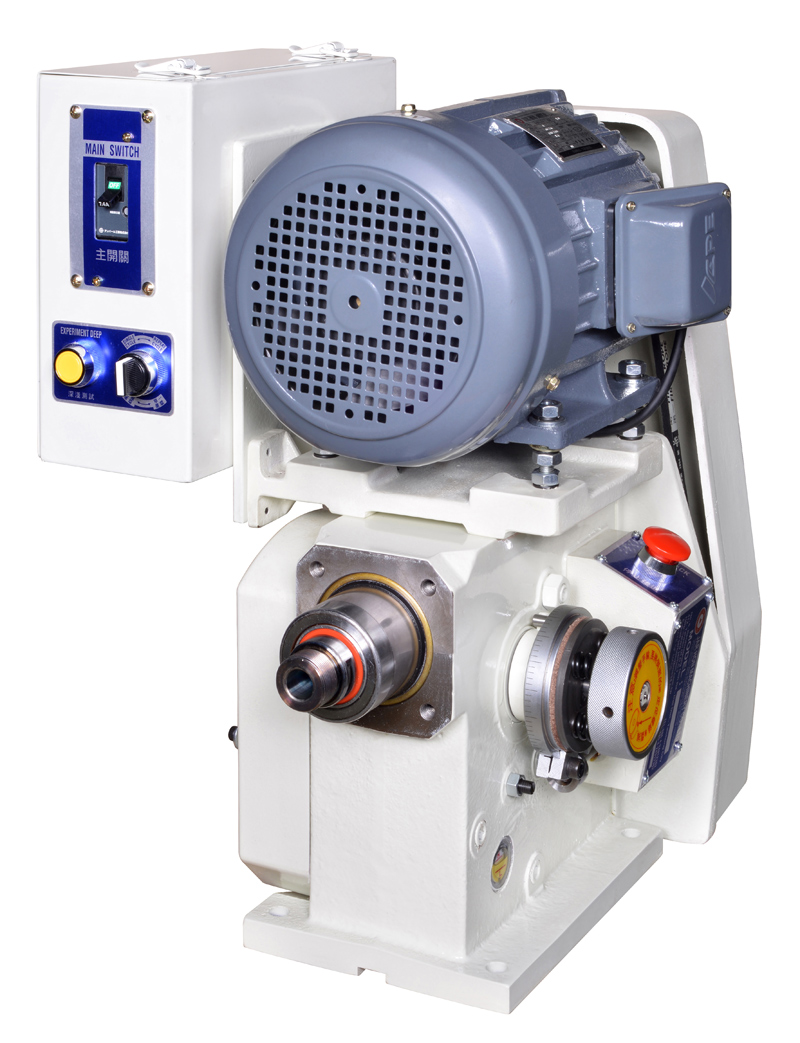

Product ID: JT-6516AInquiry
If vertical machine can not fit in with the working conditions, it can be replaced by horizontal special purpose machine.
- Free to exchange tiny pitch.
- Quick and easy to exchange.
- Gear drives with merely one side teeth without slots.
- Slow revolving, wear resisting
- Because one running is for each tapping thread, it can taps perfect thread's rings to let the tap enlarge the using life time, the accuracy gets the standard of the gauge, the working piece cannot pull jumping while the tapping is backing action, it can simplify the fixture, the working pieces don't pressure or holding, they only avoid anti-rotation to tapping job.
Specification
| Horizontal type JT-6516A (Weight about 105kg) | ||||||
| Type of the front side of Main spindle(mm) | Diameter of thread(mm) | Main spindle max. stroke(mm) | Gross Weight(kg) | |||
|
MT-2#/ER-20 collet |
Ø5~Ø16 |
65 | 133 | |||
| Main spindle speed (R.P.M.) | Auto feeding thread pitch for which suits machine | Max. capacity of Multi-spindle | Motor | |||
| 50HZ | 60HZ | Range of TPI | mm | |||
|
590 400 260 |
720 480 300 |
40 32 28 27 26 24 20 19 18 16 14 13 12 11 10 |
(0.4) (0.45) (0.5) (0.6) 0.7 0.75 0.8 0.9 1.0 1.25 1.5 1.75 1.8 2.0 2.4 2.5 |
Ø6x9 spindles Ø8x4 spindles Ø12x2 spindles |
3PH 6P 0.75KW (1HP) |
|
