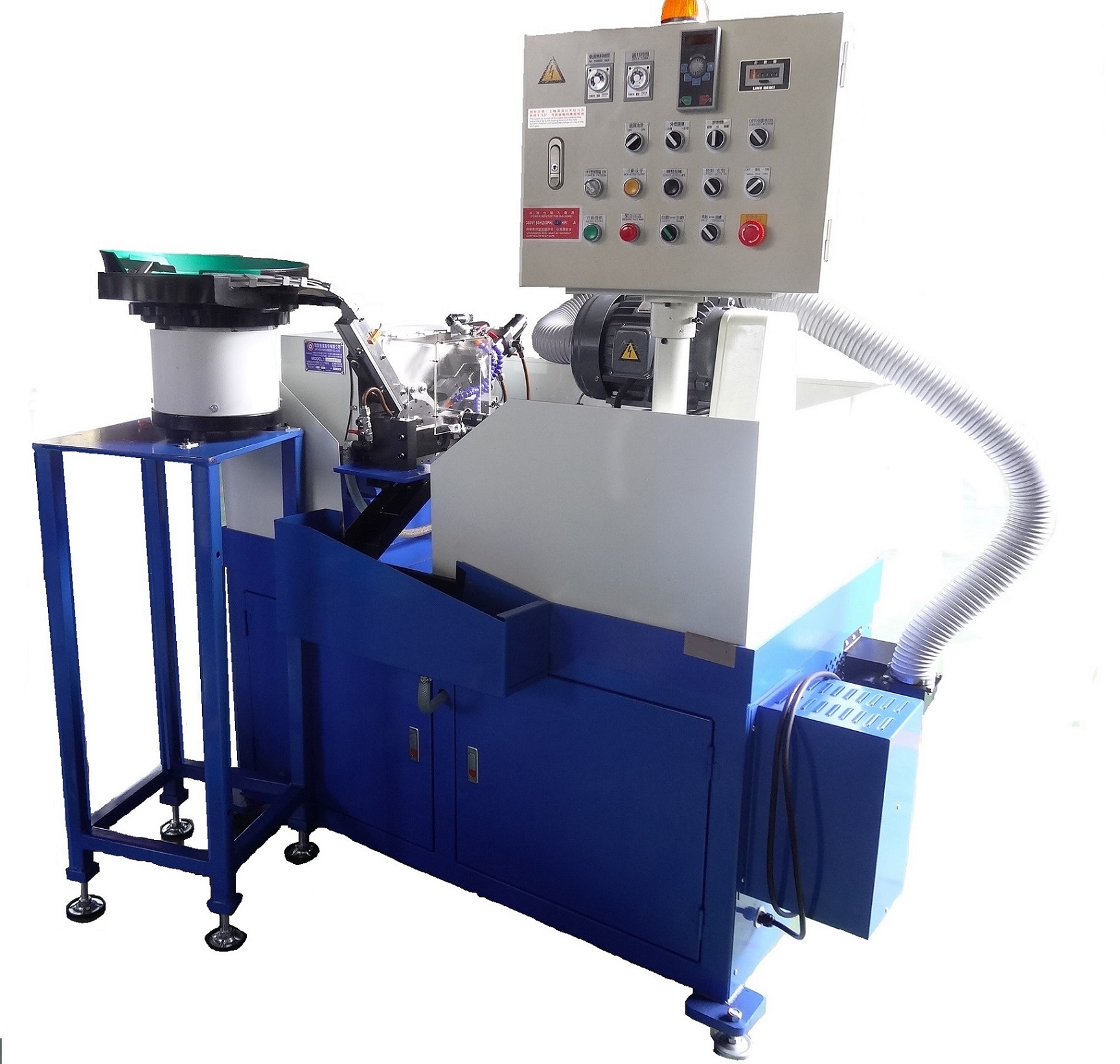

Horizontal Type Auto. Feeding Tapping Machine for Jar Hon Machinery Co., Ltd.

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, Taiwan

Horizontal Type Auto. Feeding Tapping Machine Home > Auto. Feeding Series > For Tapping > Horizontal Auto. Feeding Tapping Machine > Horizontal Type Auto. Feeding Tapping Machine

The machine can be attached double spindle head and work efficiency can be more increased.

Fully automatic tapping process. One operator can easily operate several machines at the same time.

By using proper master pitch gears(change gears A and B pair), highly accurate thread can be tapped. It is easy and quick to change different size.

The length of the tapping stroke can easily be adjusted for high accuracy which is suitable for tapping blind hole parts.

It has safe device to monitor the feeding, torque, radial, and clamping to keep TAP's long life and ensure safe working job.

It can install additional sheet metal cover to gain more safety and reduce noise.

AVAILABLE FOR

Model	JT-6516F(2S)
Max. & Min. Thread's Diameter of Tapping	3~8 (10)
Max. & Min. Length of Tapping	2~50
Max. & Min. Across Corner or Diameter	6~25
Main Motor(HP)	1HPx6P
Cooling Oil Pump	1/8HP
Cooling Oil Tank's Capacity(Liter)	30L
Clamp Working-Pieces' Power	Hydraulic
Net Weight (kgs)	1076kgs
Length x Width x Height (mm)	1750x1530x2100

Horizontal Type Auto. Feeding Tapping Machine

Product ID: JT-4508F

Horizontal Type Auto. Feeding Tapping Machine

Product ID: JT-4508F(2S)

Horizontal Type Auto. Feeding Tapping Machine

Product ID: JT-6516F
