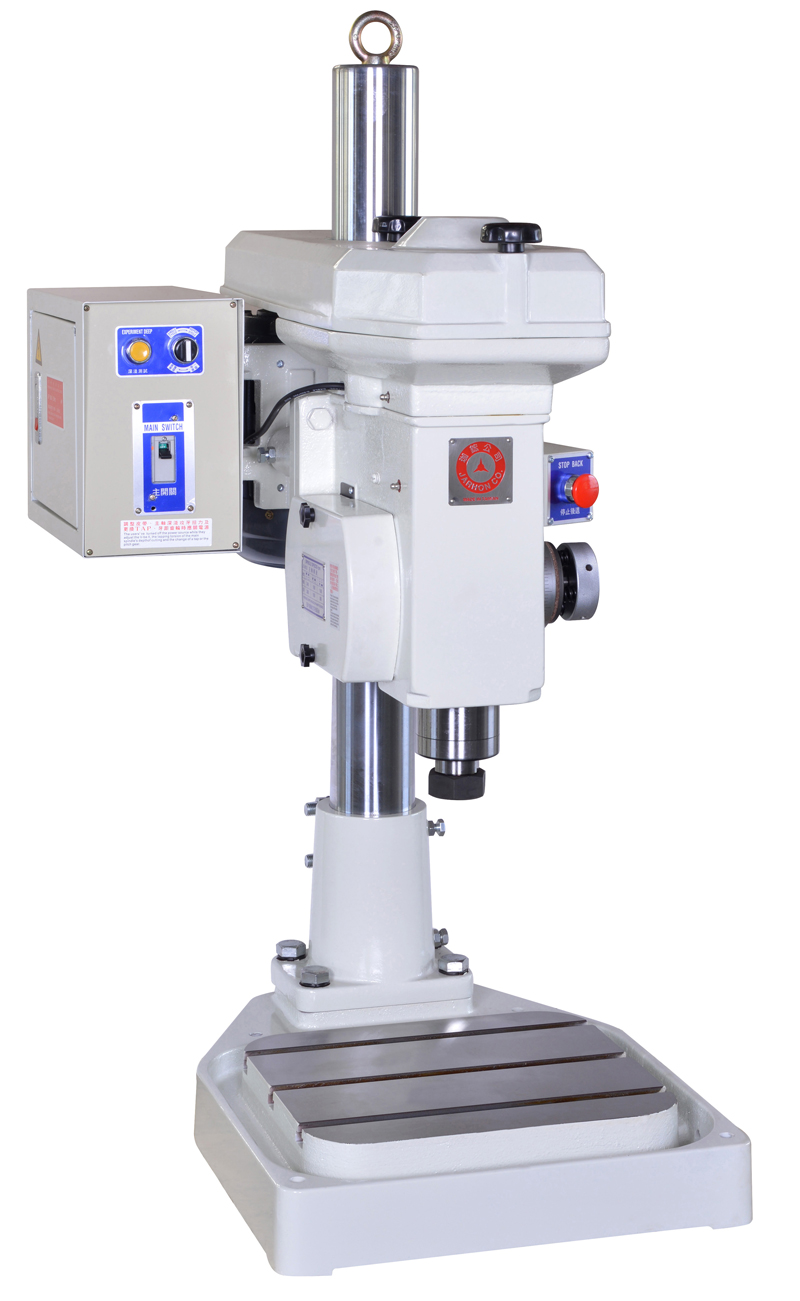

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanGear-Pitch Type Auto. Tapping Machine Home > Tapping Machine Series > Vertical Type > Gear-Pitch Type Auto. Tapping Machine
Product ID: JT-6532Inquiry
- A set of reducing gear is installed in head of main spindle to enhance twisting force as well as reduce revolving speed to make perfect threads and prolong the tap life.
- Vertical solid column is treated by tempering to avoid of stress,surface is chrome plated, wear resisting and no rust.
- Free to exchange tiny pitch.
- Quick and easy to exchange.
- Gear drives with merely one side teeth without slots.
- Slow revolving, wear resisting
- Because one running is for each tapping thread, it can taps perfect thread's rings to let the tap enlarge the using life time, the accuracy gets the standard of the gauge, the working piece cannot pull jumping while the tapping is backing action, it can simplify the fixture, the working pieces don't pressure or holding, they only avoid anti-rotation to tapping job.
Feature
EXAMPLE / TAPPING MACHINE EQUIPPED WITH THE MULTI-SPINDLE Tapping head & added equipment of the hydraulic shift slide seat
- The stroke of the tapping machine can be reduced its stroke by the parallel shift.
- It doesn't care the length of working piece which freely took or set action and the MAX. Stroke of the main spindle won't be restricted.
- While it's tapping job, the working-piece permits to be taking or set at the same time, so it couldn't waste the working time that will enhance the working efficiency to increase the production.
Specification
| Vertical type JT-6532 (Weight about 310kg) | |||||||
| Main spindle max. stroke(mm) | Type of the front side of Main spindle(mm) | Diameter of thread(mm) | Up and Down moving distance of the head(mm) | Distance between the main spindle and the table(mm) | Working table size(mm) | ||
| 65 |
MT-3# |
Ø10~Ø32 |
450 | 600 |
340x380 |
||
| Motor | Main spindle speed (R.P.M.) | Auto feeding thread pitch for which suits machine | Max. capacity of Multi-spindle | Packing dimension(cm) | Gross Weight(kg) | ||
| 50HZ | 60HZ | Range of TPI | mm | ||||
|
3PH 6P 1.5KW (2HP) |
280 150 80 |
340 180 100 |
19 18 16 14 13 12 11 10 9 8 7 |
1.25 1.5 1.75 1.8 2.0 2.4 2.5 3.0 3.5 |
Ø10x10 spindles Ø16x4 spindles Ø20x2 spindles |
102x69x138 (LxWxH) |
350 |
