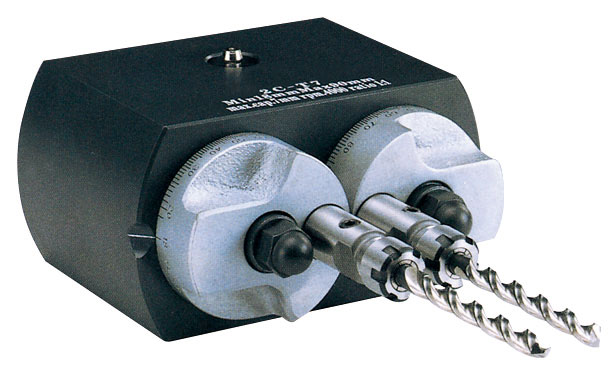

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, Taiwan2-Spindle Drilling/Tapping Head Home > Multi-Spindle Drilling/Tapping Head Series > Adjustable Type Two-Spindle > 2-Spindle Drilling/Tapping Head
Product ID: Inquiry
- Adjustable spacing between spindles: 13.5 - 164mm
- Drilling capacity for steel: Ø5 - Ø14mm
- Can cooperate with the main spindle of the machine to do the reversible turning; it is suitable for the drilling and tapping.
- (Please refer to the specification chart.)
Specification
| Model | Spacing(mm) | Weight | ||
| Min | Max |
Max Capacity |
kg | |
| 2C-T5 | 13.5 | 73.5 | Ø5 | 3.6 |
| 2C-T7 | 18 | 90 | Ø7 | 4.5 |
| 2C-T8 | 25 | 151 | Ø6 | 8.7 |
| 2C-T10 | 22 | 106 | Ø10 | 5.5 |
| 2C-T12 | 26 | 126 | Ø12 | 7.3 |
| 2C-T16 | 36 | 164 | Ø14 | 10.7 |
| T-074 | 12 | 74 | Ø4 | 4 |
Corresponing chart for multiple spindle boring head and a wide variety of collects.
