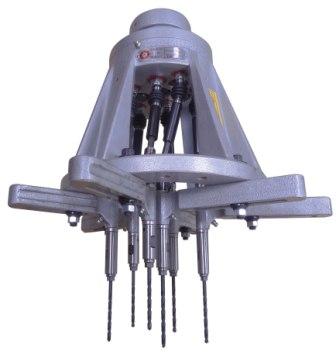

Universal-Round Type Multi-Spindle Head for Jar Hon Machinery Co., Ltd.

UR type multi-spindle is made by gear and universal coupling, it regulates the distance very convenient and won't limited by the gear that will save lots of time to adjust, and it also doesn't have dead corner.

The operation is very smoothly and convenience, it's the most popular product of the adjustable items.

For the life time of universal coupling please does not move over 15° range, it equals within 30mm of the front back, left & right sides of the vertical position.

Specification

Model	Collet	Maxinum Drilling Capacity	Lowest Distance	Max. Range of Centers	Spindle
U-120	C-5 C-6 C-9	5.0 6.0 8.0	13 20 29	Ø120	2-8
U-165	C-5 C-6 C-9 C-12	5.0 6.0 8.0 11(Heavey duty type)	13 20 29 29	Ø165	3-10
U-200	C-5 C-6 C-9 C-12	5.0 6.0 8.0 11(Heavey duty type)	13 20 30 30	Ø200	4-12
U-250	C-5 C-6 C-9 C-12	5.0 6.0 8.0 11(Heavey duty type)	13 20 30 30	Ø250	4-16
U-300	C-5 C-6 C-9 C-12	5.0 6.0 8.0 11(Heavey duty type)	13 20 30 30	Ø300	4-16
